Images of the automotive adapter I built for my Gmini 120. Sorry no schematics

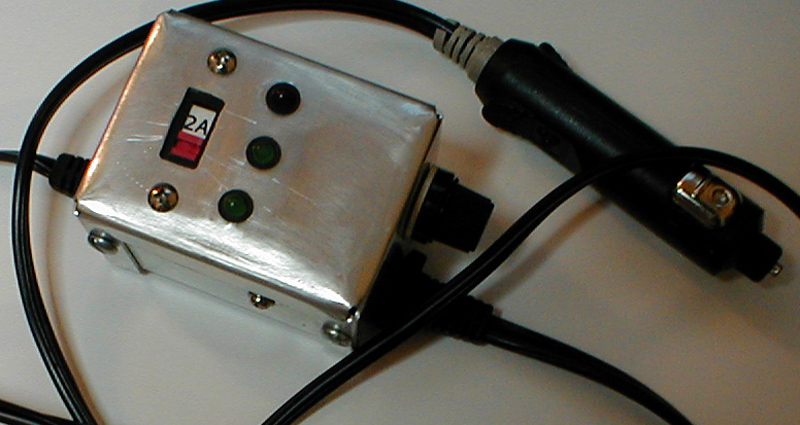

outside 5 volt auto adapter capable of 2 amps (can select 1 or 2 amp) Built from RadioShack parts for about $12 (including aluminum casing)

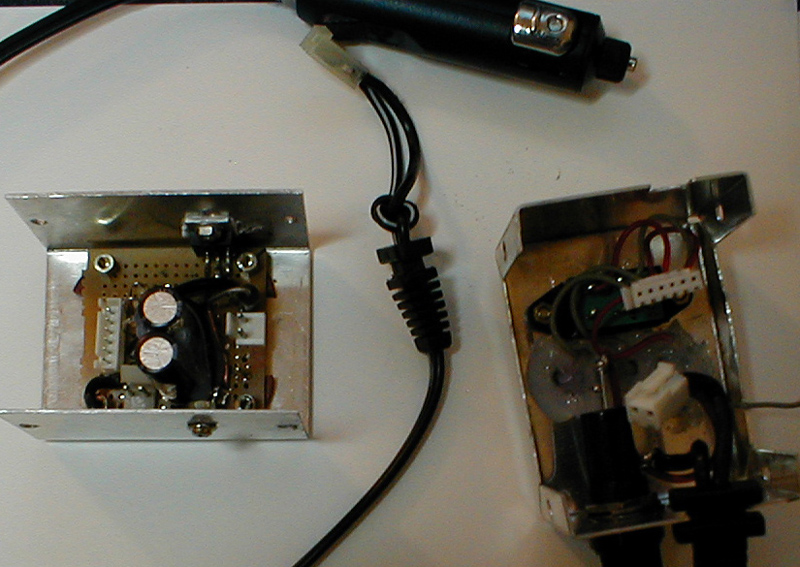

inside Inside of my homemade adapter
The circuit for this is very simple; 12v DC from the auto, use a common ground, a couple fixed 5v DC regulators in parallel, connect a few 5v capacitors in parallel with the output and feed that to the 5v audio player of your choice.
